# POC payment architecture: P1 & P2

The POC realizes x402 as **two payment programs** against two resource servers. **JMYR (a ZTP20 token)** or **native ZETRIX** may be used; the technical team decides. **Policy-engine checks are explicitly out of scope** for the POC.

## P1: VC issuance via MBI (paid issuance)

The **MBI Resource Server (MYID issuer)** both settles the payment and issues the VC in one location, because it holds the issuer key.

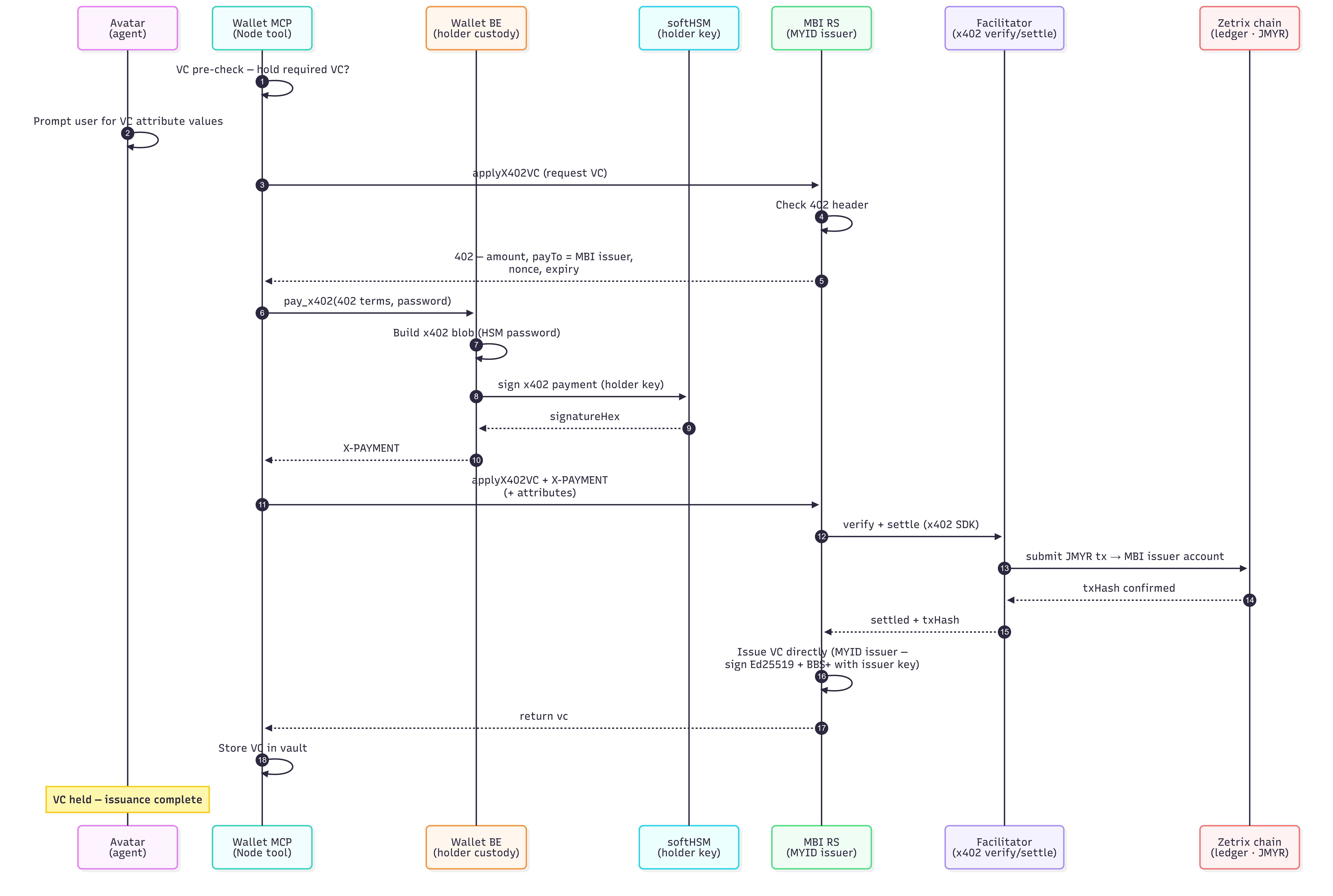

<figure><img src="https://1469461171-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FXcoJUOiksWSVn1v6flsh%2Fuploads%2Fgit-blob-d9ab65e956cd63aa6533d4bddba286f66488513a%2Fp1-issuance-flow.png?alt=media" alt=""><figcaption><p>P1: paid VC issuance via MBI</p></figcaption></figure>

* The wallet initiates issuance with `applyX402VC`.
* MBI returns x402 payment terms with `payTo` = the MBI issuer account.
* The wallet builds the **x402 payment blob (unsigned)** and signs it via the **SoftHSM holder key** (password-gated).
* MBI calls `/facilitator/verify` + `/facilitator/settle`; on settlement it **issues the VC directly** (Ed25519 + BBS+).
* The agent stores the VC in its **Vault**.

### Overview

x402 revives the long-reserved HTTP 402 Payment Required status as a machine-to-machine payment handshake: request → 402 with terms → pay on-chain → retry with proof of payment → resource served. The wallet has **no x402 client SDK**; Wallet BE builds the payment blob with Zetrix tooling and signs it with the holder key in softHSM. Settlement runs through the **Facilitator** onto the Zetrix chain.

### Messages (x402 wire format)

**The 402 Payment Required challenge** follows the x402 wire format (`x402Version` + `accepts[]`) so standard x402 clients can consume it. It is returned **raw** (not inside the service's response envelope). One `accepts[]` entry per configured asset; the holder picks one:

```json
{
  "x402Version": 1,
  "error": "payment required to issue credential",
  "accepts": [
    {
      "scheme": "exact",
      "network": "zetrix:testnet",
      "maxAmountRequired": "100",              // smallest unit — EXACT match required
      "resource": "/v1/vc/pay/apply",
      "payTo": "Z...",                          // issuer (or resource) account
      "asset": "Z<ztp20-contract>",             // JMYR (ZTP20); native ZTX currently disabled in config
      "maxTimeoutSeconds": 300,
      "extra": { "paymentId": "b1e2…", "templateCode": "myid_identity", "issuerAddress": "Z..." }
    }
  ]
}
```

**The retry** carries an `X-PAYMENT` header, `base64(JSON)` of the facilitator payment payload. It is **self-pay** (`gasModel: client`): the wallet (via Wallet BE) builds and signs its **own** transfer blob to `payTo`:

```json
{
  "x402Version": 2,
  "scheme": "exact",
  "network": "zetrix:testnet",
  "payload": {
    "type": "signed_transaction",              // self-pay only; sponsored path not accepted
    "validBefore": 1720000000,
    "transactionBlob": "0A2F...hex...",         // holder-built transfer to payTo
    "signatures": [ { "sign_data": "3044...hex...", "public_key": "b0014...hex..." } ]  // holder key (softHSM)
  }
}
```

The settling party (MBI for issuance, RS for usage) verifies amount/`payTo`/asset **exactly** (overpayment is rejected), then calls the Facilitator `POST /ztx/facilitator/verify` (→ `isValid`) and `POST /ztx/facilitator/settle` (→ `status: "SUBMITTED"` + `txHash`). Self-pay settlement is **synchronous**. On success the response carries `X-PAYMENT-RESPONSE: base64({ success, txHash, networkId })`.

### Two payment purposes

|           | Subscription (one-time)                       | Pay-per-use (usage)            |
| --------- | --------------------------------------------- | ------------------------------ |
| When      | The agent needs a credential it does not hold | Every subsequent paid API call |
| Endpoint  | Zetrix BaaS VC issuer                         | API Resource Server            |
| Result    | The API Subscription Credential is issued     | That one call succeeds         |
| Frequency | Once                                          | Per request                    |

## P2: pay-per-use (x401 + x402 on the API Resource Server)

For protected, metered APIs the **API Resource Server** requires proof and payment on the same call:

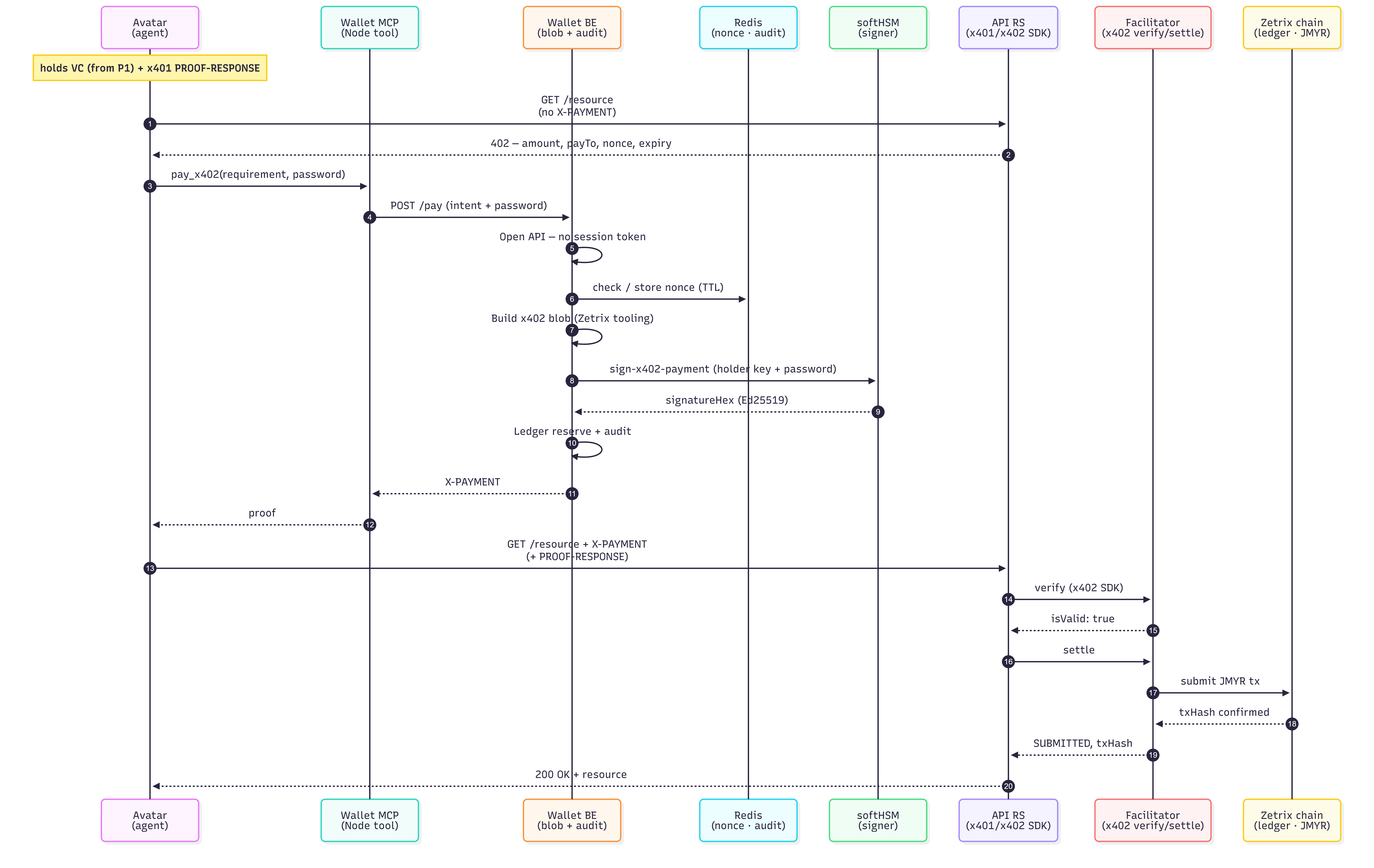

<figure><img src="https://1469461171-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FXcoJUOiksWSVn1v6flsh%2Fuploads%2Fgit-blob-827ebd412c8f13f9c99640dd9a7029f65fe94d6b%2Fp2-pay-per-use-flow.png?alt=media" alt=""><figcaption><p>P2: pay-per-use (x401 + x402 on the API RS)</p></figcaption></figure>

The PROOF-RESPONSE carries the x401 VP (validated by the OID4VP verifier) and is **paired with the x402 payment blob** for the metered call.

**Simplifications adopted (changes from the prior design):**

* **Eliminated** the Wallet BE on-chain `txHash` verification for P1.
* **Eliminated** PENDING / consumed-set tracking for P1.
* **New:** MBI settles and issues in one location.
* **Signing:** password-gated SoftHSM calls; no session tokens.

## Combined end-to-end: first paid access

First time an agent hits a paid resource: check vault → if no VC, x402 one-time issuance via MBI (P1) issues the VC → present the VC as x401 proof (VP submitted to the OID4VP verifier, result relayed as PROOF-RESPONSE to the API RS) → x402 pay-per-use (P2) for the call. Phase 2 runs only when no VC is held; on later calls it's skipped.

#### Access and VC pre-check

```mermaid
sequenceDiagram
    autonumber
    participant AV as Avatar<br/>(agent)
    participant WMCP as Wallet MCP<br/>(Node tool)
    participant OID as OID4VP<br/>(verifier)
    participant API as API RS<br/>(x401/x402 SDK)
    rect rgb(235,242,250)
    Note over AV,API: 1 · ACCESS + VC PRE-CHECK
    AV->>API: Request protected resource<br/>POST /v1/accounts
    API->>OID: RequestVerification (callbackUrl omitted)
    OID-->>API: VerificationData
    API-->>AV: 401 + PROOF-REQUEST
    AV->>WMCP: Forward PROOF-REQUEST
    WMCP->>WMCP: Check vault — hold required VC?
    end
```

#### VC issuance via MBI (P1)

```mermaid
sequenceDiagram
    autonumber
    participant AV as Avatar<br/>(agent)
    participant WMCP as Wallet MCP<br/>(Node tool)
    participant WBE as Wallet BE<br/>(blob + audit)
    participant HSM as softHSM<br/>(signer)
    participant MBI as MBI RS<br/>(MYID issuer)
    participant FAC as Facilitator<br/>(x402 verify/settle)
    participant CHAIN as Zetrix chain<br/>(ledger · JMYR)
    rect rgb(250,245,230)
    Note over AV,CHAIN: 2 · IF VC NOT HELD — x402 VC issuance via MBI (P1)
    AV->>AV: Prompt user for VC attribute values
    WMCP->>MBI: applyX402VC (request VC)
    MBI-->>WMCP: 402 — payTo = MBI issuer, nonce, expiry
    WMCP->>WBE: pay_x402  [via MCP]
    WBE->>WBE: Build x402 blob
    WBE->>HSM: sign x402 payment (holder key)
    HSM-->>WBE: signatureHex
    WBE-->>WMCP: X-PAYMENT  [via MCP]
    WMCP->>MBI: applyX402VC + X-PAYMENT (+ attributes)
    MBI->>FAC: verify + settle (x402 SDK)
    FAC->>CHAIN: submit JMYR tx → MBI issuer account
    CHAIN-->>FAC: txHash confirmed
    FAC-->>MBI: settled + txHash
    MBI->>MBI: Issue VC directly (MYID issuer — Ed25519 + BBS+)
    MBI-->>WMCP: return vc
    WMCP->>WMCP: Store VC in vault
    end
```

#### x401 identity proof (OID4VP → API RS)

```mermaid
sequenceDiagram
    autonumber
    participant AV as Avatar<br/>(agent)
    participant WMCP as Wallet MCP<br/>(Node tool)
    participant OID as OID4VP<br/>(verifier)
    participant WBE as Wallet BE<br/>(blob + audit)
    participant HSM as softHSM<br/>(signer)
    participant API as API RS<br/>(x401/x402 SDK)
    rect rgb(235,248,240)
    Note over AV,API: 3 · x401 — present identity proof (OID4VP → API RS)
    WMCP->>OID: GetPresentationDefinition
    OID-->>WMCP: DCQL credential_query<br/>+ nonce + response_uri
    WMCP->>WMCP: Derive BBS+ / Bulletproof SD proof (software)
    WMCP->>WBE: Sign holder-binding over nonce
    WBE->>HSM: sign
    HSM-->>WBE: signature
    WBE-->>WMCP: holder-binding signature
    WMCP->>OID: Submit VP + keys<br/>POST /v1/presentation/submit
    OID->>OID: Verify VP in-process (BBS+ / range / DCQL, resolve ZID)
    OID-->>WMCP: Result + HMAC signature (sync)
    WMCP-->>AV: Result artifact (PROOF-RESPONSE)
    AV->>API: Retry + PROOF-RESPONSE
    API->>API: Recompute + verify HMAC
    end
```

#### x402 pay-per-use (P2, API RS)

```mermaid
sequenceDiagram
    autonumber
    participant AV as Avatar<br/>(agent)
    participant WMCP as Wallet MCP<br/>(Node tool)
    participant WBE as Wallet BE<br/>(blob + audit)
    participant HSM as softHSM<br/>(signer)
    participant API as API RS<br/>(x401/x402 SDK)
    participant FAC as Facilitator<br/>(x402 verify/settle)
    participant CHAIN as Zetrix chain<br/>(ledger · JMYR)
    rect rgb(245,238,250)
    Note over AV,CHAIN: 4 · x402 — pay-per-use (P2, API RS)
    API-->>AV: 402 Payment Required (usage)
    AV->>WMCP: Forward 402 (usage)
    WMCP->>WBE: pay_x402(usage, password)
    WBE->>WBE: Build x402 blob
    WBE->>HSM: sign-x402-payment (holder key + password)
    HSM-->>WBE: signatureHex
    WBE-->>WMCP: X-PAYMENT
    WMCP-->>AV: X-PAYMENT (proof)
    AV->>API: Retry + X-PAYMENT<br/>(+ PROOF-RESPONSE)
    API->>FAC: verify + settle
    FAC->>CHAIN: submit JMYR tx
    CHAIN-->>FAC: txHash confirmed
    FAC-->>API: settled
    API-->>AV: 200 OK + resource
    end
```
